Τριφασικοί Δικτύου

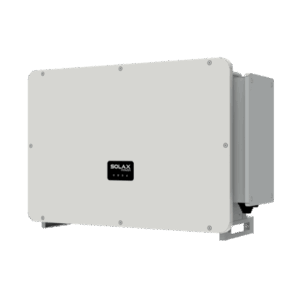

X3-FORTH
100 kW / 125 kW
Available in 75kW to 150kW, the X3-FORTH series features a compact, lightweight build with advanced heat dissipation—over 5% smaller and lighter. Smart air cooling extends fan life, while I-V curve diagnosis and night-time reactive power compensation boost system efficiency and stability.
Product Advantage
Achieving up to 99% efficiency, the X3-FORTH supports 150% PV oversizing and 110% output overloading. With 12 MPPTs, 32A per tracker, and a 180–1000Vdc MPPT range, it offers flexible, high-performance energy generation for commercial solar systems.
100kW
125kW
Phase:
Three-phase
Three-phase
Inverter Type:
X3-FORTH 100.0 kW
X3-FORTH 125.0 kW
MPP:
9/2 or 12/2
12/2
Start up Voltage:
200V
200V
Max array input power:
165.0kWp
188.0kWp
Weight:
87.0kg
87.0kg
Protection:
IP66
IP66
Warranty:
10 years
10 years
